Cloudflare Integration

Runway services with external load balancers currently use Google’s Cloud Armor for DDoS protection when exposed to the internet.

Service owners who prefer Cloudflare protection currently need manual configuration by the infrastructure team, as seen with docs.runway.gitlab.com in config-mgmt.

This blueprint outlines the implementation of a self-service option that will allow service owners to enable Cloudflare protection for their services directly through Runway.

Runway currently lacks self-service Cloudflare integration and doesn’t meet our production readiness criteria for WAF.

Since Cloudflare serves as the CDN for most of our production infrastructure, we aim to enhance Runway by providing service owners with a simple, intuitive way to protect their services using the same Cloudflare technology that safeguards our core production environment.

Example Runway workload interested in this feature: GitLab Secrets Manager

• To enable Runway workloads with an external load balancer to be fronted by Cloudflare by default. Workloads can disable this functionality if desired.
• To protect Runway endpoints with a standard set of WAF rules.
• Initial implementation will not include rate limiting capabilities, but it should establish the foundation necessary to support this feature in future iterations.

• Ability to customize WAF rules.

  Rationale: we’re starting with a standardized set of WAF rules for all Runway workloads to ensure consistent protection. As we learn from implementation, we may explore options for customization in future iterations. Workloads requiring highly specialized WAF configurations may benefit from disabling the automated Cloudflare zone functionality described in this Blueprint and, instead, deploy a dedicated Cloudflare zone managed outside of Runway.

• Ability to set rate limits.

  Rationale: while we recognize the value of customizable rate limiting, we’ve prioritized core functionality for this initial iteration. We plan to incorporate rate limiting options in a future update after gathering more detailed requirements and user feedback.

Cloudflare API tokens have limited granularity in terms of zones that can be managed and this is undesireable from a security perspective. Since our GitLab account is home to several mission critical zones, we will use a separate Runway account and allow the API token access to zones in the Runway account only. Should the API token become compromised, it will only affect zones in the Runway account.

Provisioner will create and manage a Cloudflare zone called svc.gitlab.net in the Runway account. This zone will mainly be used for managing NS records pointing to the .svc.gitlab.net zones.

Additionally, in the config-mgmt repository, we will add NS records to gitlab.net to point at the nameservers for svc.gitlab.net.

Runway workloads with an external load balancer will, by default, have two Cloudflare zones created for their workload by the Reconciler:

• Production: <workload name>.svc.gitlab.net
• Staging: <workload name>.staging.svc.gitlab.net

The origin for these endpoints will be their <workload name>[.staging].runway.gitlab.net GCP load balancer endpoints.

Workloads will be able to disable the automatic Cloudflare zone creation if desired. For example: AI gateway does not need this functionality as this service is currently routed via Cloud Connector.

Reconciler will provision a standard set of WAF rules (TBD) to each zone. We will work closely with the Foundations team to define the standard set of WAF rules.

Advanced Certificate Manager (paid add-on) will be enabled for svc.gitlab.net and we will use Total TLS to issue certificates for each proxied hostname.

Runway workloads accept unrestricted inbound traffic by default. For enhanced security, you can configure your workload to accept traffic exclusively from Cloudflare by adding spec.network_policies.cloudflare: true to your runway.yml file:

spec:
  network_policies:
    cloudflare: true

Any requests directed at the load balancer for your workload (bypassing Cloudflare) will receive a 403 response.

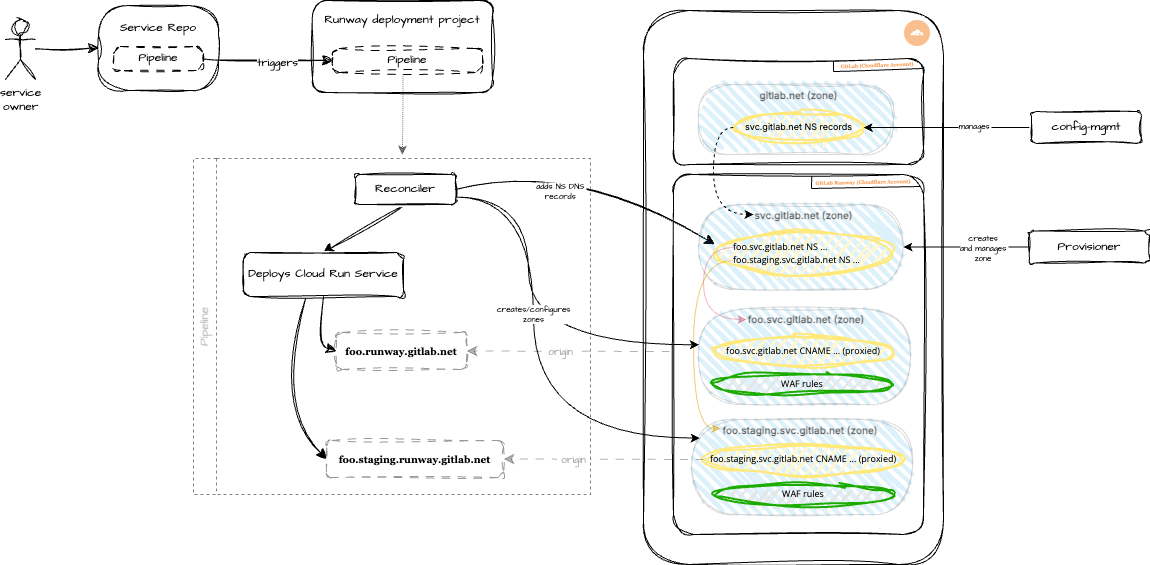

Diagram notes:

• NS records for svc.gitlab.net that live in gitlab.net will be managed out-of-band in the config-mgmt repository.
• Provisioner will create/manage the svc.gitlab.net zone, which is primarily used for serving NS records for each .svc.gitlab.net subdomain.
• Reconciler will, by default, create two zones for each workload (<workload>.svc.gitlab.net and <workload>.staging.svc.gitlab.net). It will also create proxied DNS records, standard set of WAF rules, etc.

We will add a new instance of cloudflare-exporter to scrape all zones in the GitLab Runway account. Similar to Cloud Connector, we can leverage cloudflare_zone_firewall_events_count to alert on anomalies.
